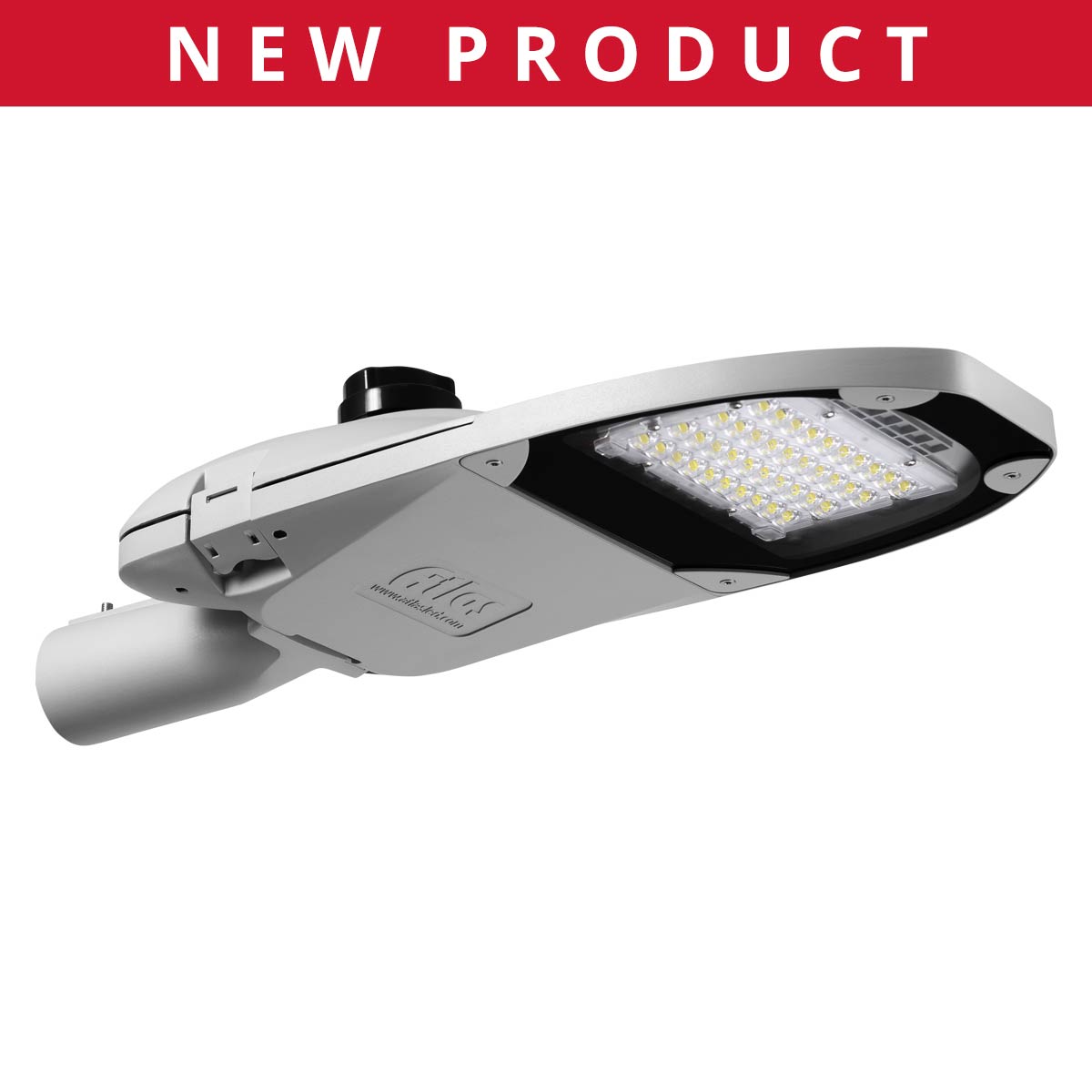

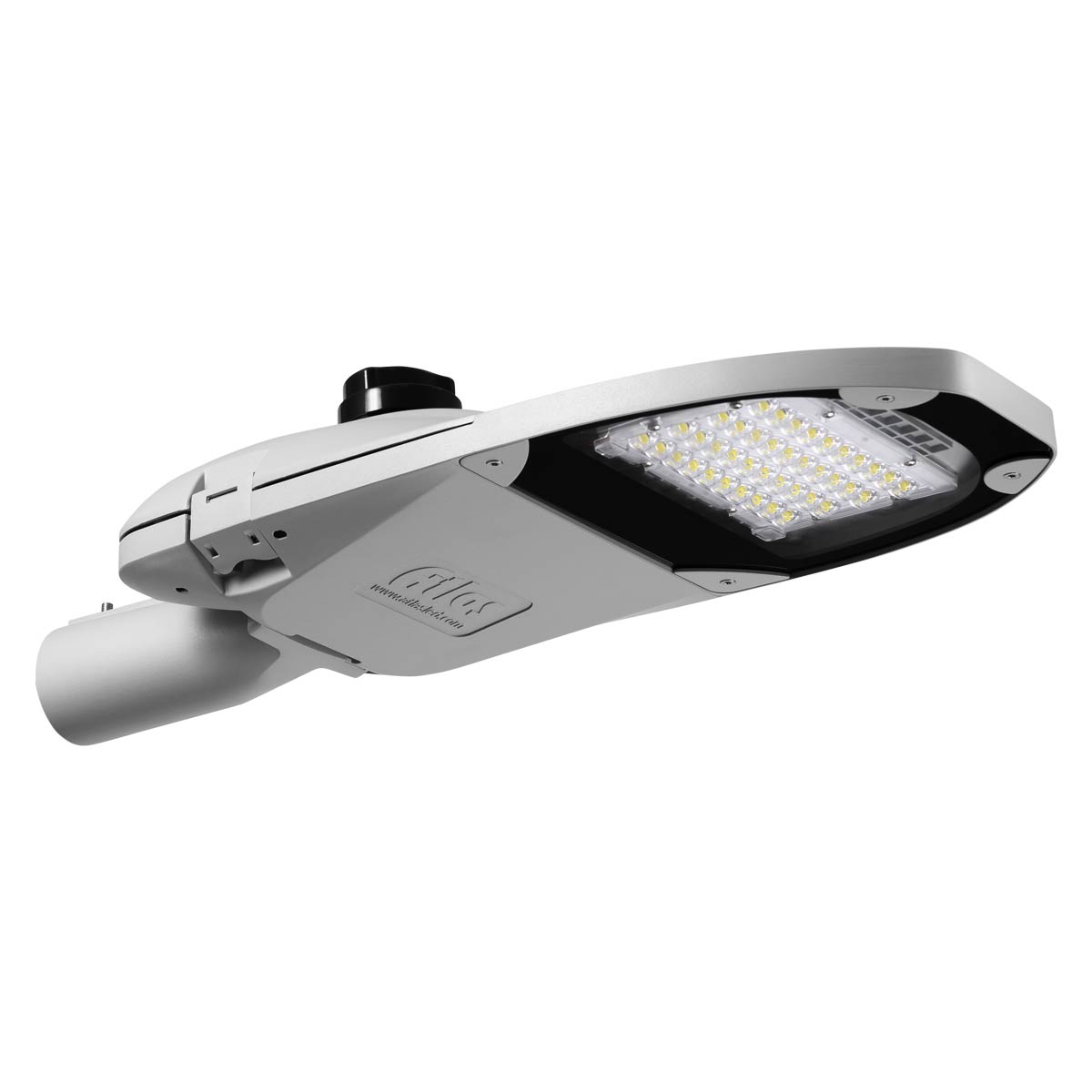

Constitution 2nd Gen. Roadway Light
The Constitution Series LED Roadway Light is designed as a complete system to optimize LED life and light output. Constructed of die-cast aluminum, this street light is designed to optimize heat dissipation. This luminaire performs efficiently and reliably against rugged outdoor environments. This LED roadway light’s functional design is incorporated with a high efficiency LED module and precise optical control.
Featured Resources
Variations
| Lumen Package | Distribution | CRI | 3000K CCT | 4000K CCT | 4500K CCT | 5000K CCT | Wattage | ||||
| Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | ||||
| 8L | Type II | 70 | 8,236 | 147 | 8,799 | 157 | 8,789 | 157 | 8,673 | 155 | 56 |
| Type III | 70 | 8,007 | 143 | 8,554 | 153 | 8,545 | 153 | 8,432 | 151 | ||
| Forward Throw | 70 | 8,099 | 145 | 8,652 | 155 | 8,643 | 154 | 8,529 | 152 | ||
| Type V | 70 | 8,251 | 147 | 8,815 | 157 | 8,806 | 157 | 8,689 | 155 | ||
| 14L | Type II | 70 | 13,861 | 130 | 14,807 | 136 | 14,791 | 136 | 14,596 | 135 | 107 |
| Type III | 70 | 13,475 | 126 | 14,395 | 133 | 14,380 | 133 | 14,190 | 132 | ||
| Forward Throw | 70 | 13,630 | 128 | 14,561 | 134 | 14,545 | 134 | 14,353 | 133 | ||
| Type V | 70 | 13,886 | 130 | 14,834 | 137 | 14,819 | 137 | 14,623 | 136 | ||
| 18L | Type II | 70 | 17,902 | 120 | 17,902 | 124 | 18,340 | 124 | 18,111 | 122 | 148 |
| Type III | 70 | 17,687 | 118 | 17,687 | 122 | 18,120 | 122 | 17,893 | 121 | ||
| Forward Throw | 70 | 17,694 | 118 | 17,694 | 122 | 18,127 | 122 | 17,900 | 121 | ||
| Type V | 70 | 17,914 | 120 | 17,914 | 124 | 18,352 | 124 | 18,123 | 122 | ||
Features & Specifications
- Constructed of die-cast aluminum, this street light is designed to optimize heat dissipation.
- Designed as a complete system to optimize LED life and light output.
- Functional design is incorporated with a high efficiency LED module and precise optical control.
- High-performance optics direct the light towards the desired target, allowing for multiple light distribution patterns.
- Available distribution patterns include Types II, III, V and Forward Throw.
- A 7-pin twist-lock photocell receptacle and shorting cap is standard.
Max Lumens
18,000Min Lumens
8,000Color Temperatures
3000K 4000K 4500K 5000KAdditional Options
