SLPSS - Eagle Series Fully Selectable Area Light Small

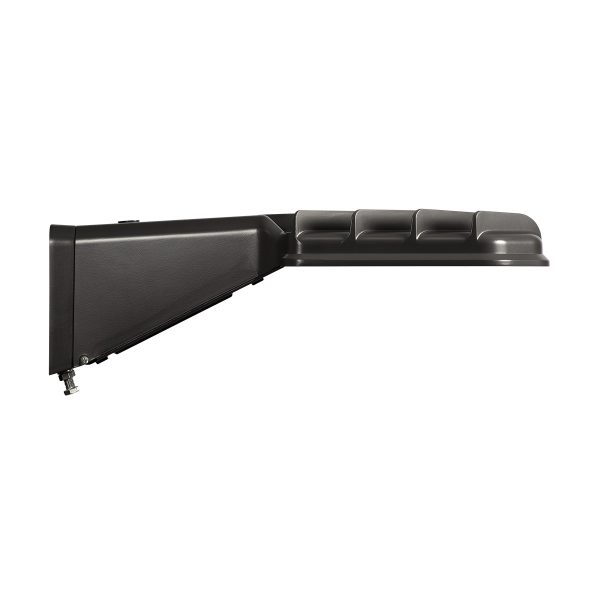

SLPS - Eagle Series Area Light Small Side View

SLPSS - Eagle Series Fully Selectable Area Light Small Inside View

Eagle Series Lumen Selectable Area Light Small

SLPSS

These area lights feature user‑selectable lumen output, effectively replacing 3 standard fixtures with just 1. The die-cast aluminum housing features external airflow fins and a separate driver compartment help to reduce operating temperatures. A wide array of optical patterns and configurations ensure the perfect fit for virtually any area lighting application.

All Available Sizes

Medium

Featured Resources

SLPS Cut Sheet

Ask a Question

Variations

Lumen Package	Distribution	CRI	4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Lumen Package	Distribution	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
6-12L	T2	70	6,036	143	6,036	143	6,036	143	42	175W MH
	FT	70	5,899	140	5,859	139	5,859	139
	T5	70	5,812	138	5,812	138	5,812	138
	T2	70	8,946	142	8,946	142	8,946	142	63	175W MH
	FT	70	8,743	138	8,684	137	8,684	137
	T5	70	8,614	136	8,614	136	8,614	136
	T2	70	11,755	137	11,755	137	11,755	137	86	250W MH
	FT	70	11,488	134	11,410	133	11,410	133
	T5	70	11,319	132	11,319	132	11,319	132

Features & Specifications

Replace 3 standard area lights with just 1 fixture.
Advanced single-piece acrylic optics ensure smooth light coverage.
Available distribution patterns include Types II, V and Forward Throw.
On most distributions, the optics can be rotated to change the direction of the light pattern.
Universal Bracket System makes installation to any style pole quick and easy.
