IHB3 - Independence High Bay Triple Clear Lens

Independence High Bay Triple

IHB3

The Independence Series High Bays offer exceptional performance and value in a lightweight, compact design. Available in single, double and triple module configurations and are perfect for virtually any high bay application. A portion of the proceeds from every Independence Series product sold will be donated to The Independence Fund, a non-profit organization dedicated to helping wounded veterans.

All Available Versions

Single

INDEPENDENCE LUMEN SELECTABLE HIGH BAY (IHBS)

Single
Selectable
Lumens

Double

Featured Resources

IHB Cut Sheet

Ask a Question

Variations

Housing	Unit	Lens	CRI	4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Unit	Lens	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
IHB	72L3	Clear	80	71730	148	71697	148	71697	148	485	1000W MH
	72LD3	Diffused	80	64518	133	64212	133	64212	133	162
	72LN3	Narrow	80	64089	132	64089	132	64473	133	486
	90L3	Clear	80	88650	159	88650	159	91110	166	557	1500W MH
	90LD3	Diffused	80	79410	143	79410	143	82029	149	557
	90LN3	Narrow	80	79464	143	79464	143	81291	148	556

Features & Specifications

The three modules in this unit are pre-wired together from the factory..
The high brightness LEDs produce a smooth, even and uniform light pattern at a variety of mounting heights.
Clear lens is standard; also available with a diffused lens for enhanced visual comfort, and narrow optics for aisle lighting applications.
The low-profile housing is lightweight and durable, making it easy to install and perfect for many applications.

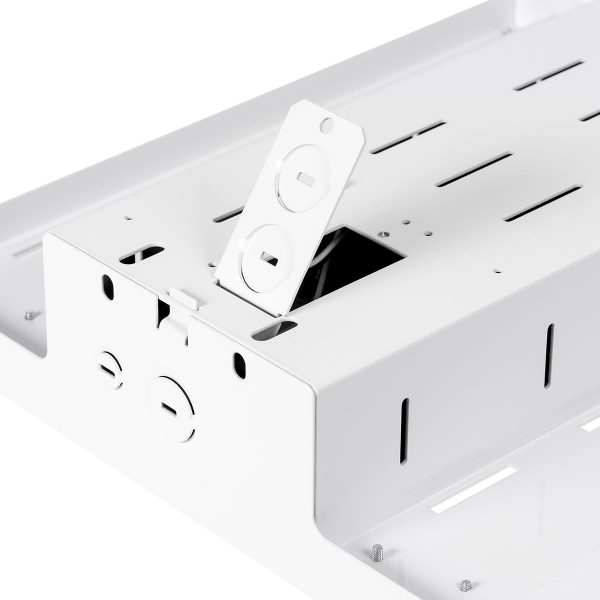

The convenient quick wire access panel is easy to open by removing a single screw on the top of the fixture.
The tool-free driver compartment allows for easy access for maintenance.
The available Pendant Mount Kit makes 1‑to‑1 HID replacements quick and easy.
Also available in single and double module configurations to accommodate an even larger array of high bay applications.
