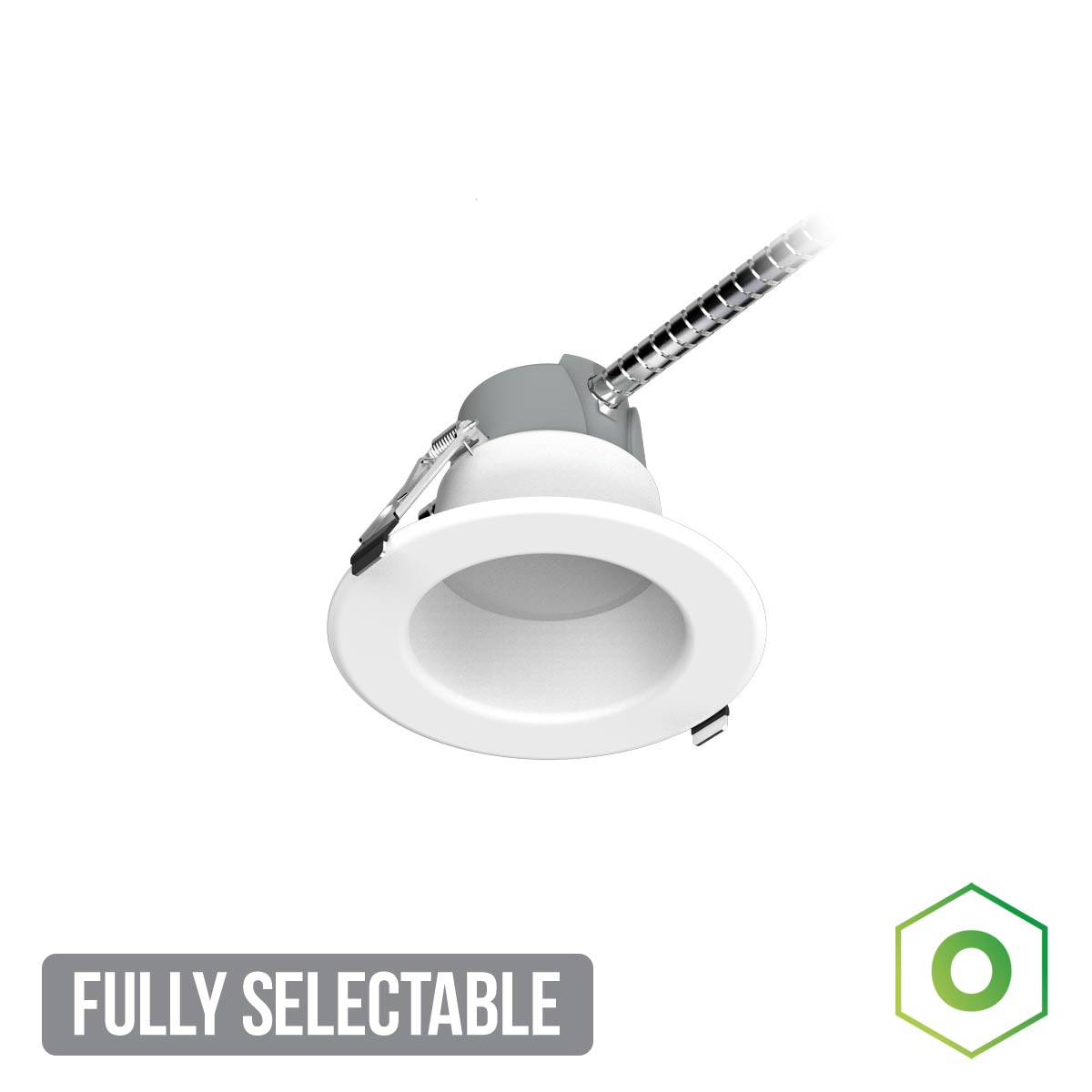

Origin Fully Selectable 4″ Commercial Downlight

CDL4

The Fully Selectable Commercial Downlights offer a versatile range of sizes and lumen options, coupled with customizable color temperature options and a durable aluminum housing with engineered reflectors for wide light distributions. They are suitable for direct mount or installation with a frame kit on drywall or T-Grid surfaces, providing flexibility for various lighting needs in commercial settings.

Featured Resources

Ask a Question

Variations

UnitFixture SizeCRIDelivered LumensEfficacy (LPW)Wattage
CDL4SEL1-2L4"≥ 90100010010
150010015
200010020

Features & Specifications

  • 16 gauge spun aluminum reflector housing.
  • Custom engineered reflectors for wide distribution.
  • Direct mount or with Frame kit installed on drywall or T-Grid.
  • Quick and easy to select and set up.
  • Origin products are backed by the same US-based customer service and technical support teams as all other Atlas  products.
Max Lumens
2,000
Min Lumens
1,000
Color Temperatures
Selectable 2700K 3000K 3500K 4000K 5000K
Additional Options
QuickShipTitle 24 CompliantDimmable
