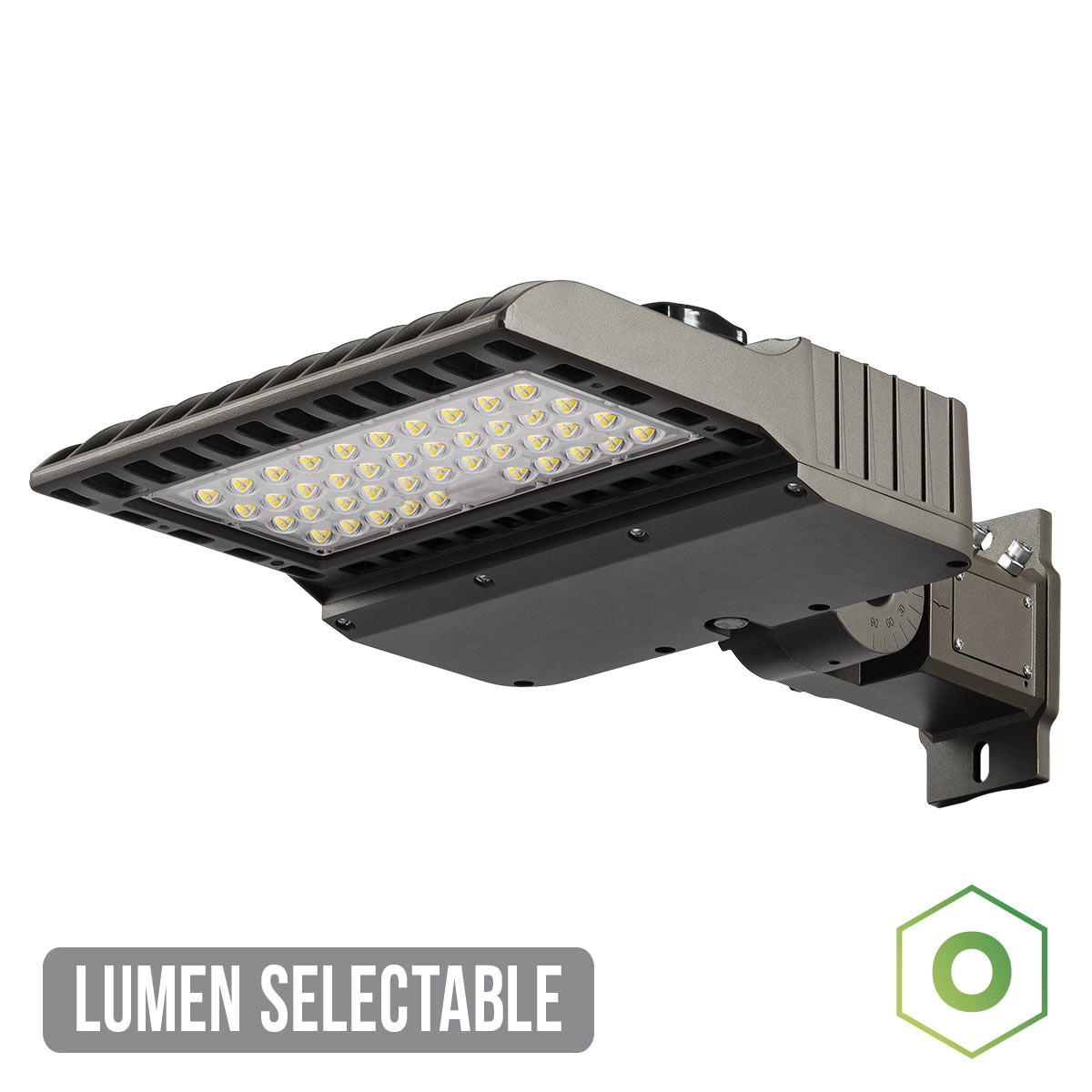

ORALSEL – Origin Lumen Selectable Area Light

Origin Lumen Selectable Area Light

ORALSEL

Origin by Atlas Lighting is our economy line of products that are designed to provide a highly competitive, lower-cost entry point to LED lighting. The Origin Area Light features multiple lumen output settings in a single fixture. This helps to reduce stocking complexity and provides additional flexibility for contractors.

Featured Resources

ORALSEL12-24L Cut Sheet

Ask a Question

Variations

Housing	Lumen Package	Distribution	CRI	4000K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Lumen Package	Distribution	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
ORALSEL	12-24L	T3	80	8,347	155	7,928	147	54	175W MH
		T5	80	8,241	153	8,124	150	54	175W MH
		T3	80	11,651	149	11,067	142	78	250W MH
		T5	80	11,503	147	11,339	145	78	250W MH
		T3	80	14,845	143	14,101	136	104	250W MH
		T5	80	14,656	141	14,447	139	104	250W MH
		T3	80	17,253	136	16,388	129	127	400W MH
		T5	80	17,033	134	16,790	132	127	400W MH
		T3	80	19,701	129	18,713	122	153	400W MH
		T5	80	19,451	127	19,173	125	153	400W MH

Features & Specifications

Features multiple selectable lumen packages in a single fixture.
Multi-Mount Bracket enables pole, trunnion and slipfitter mounting.

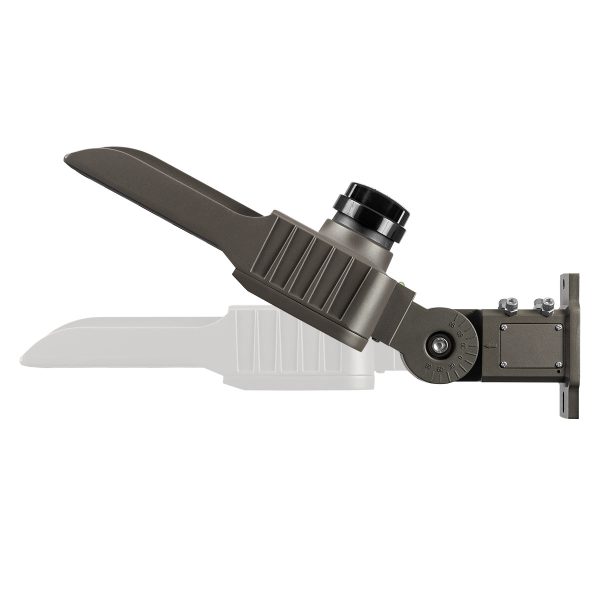

Offers 180º of mounting angle adjustment.
Both Type III and Type V optics are included in the box.
Origin products are backed by the same US-based customer service and technical support teams as all other Atlas products.
