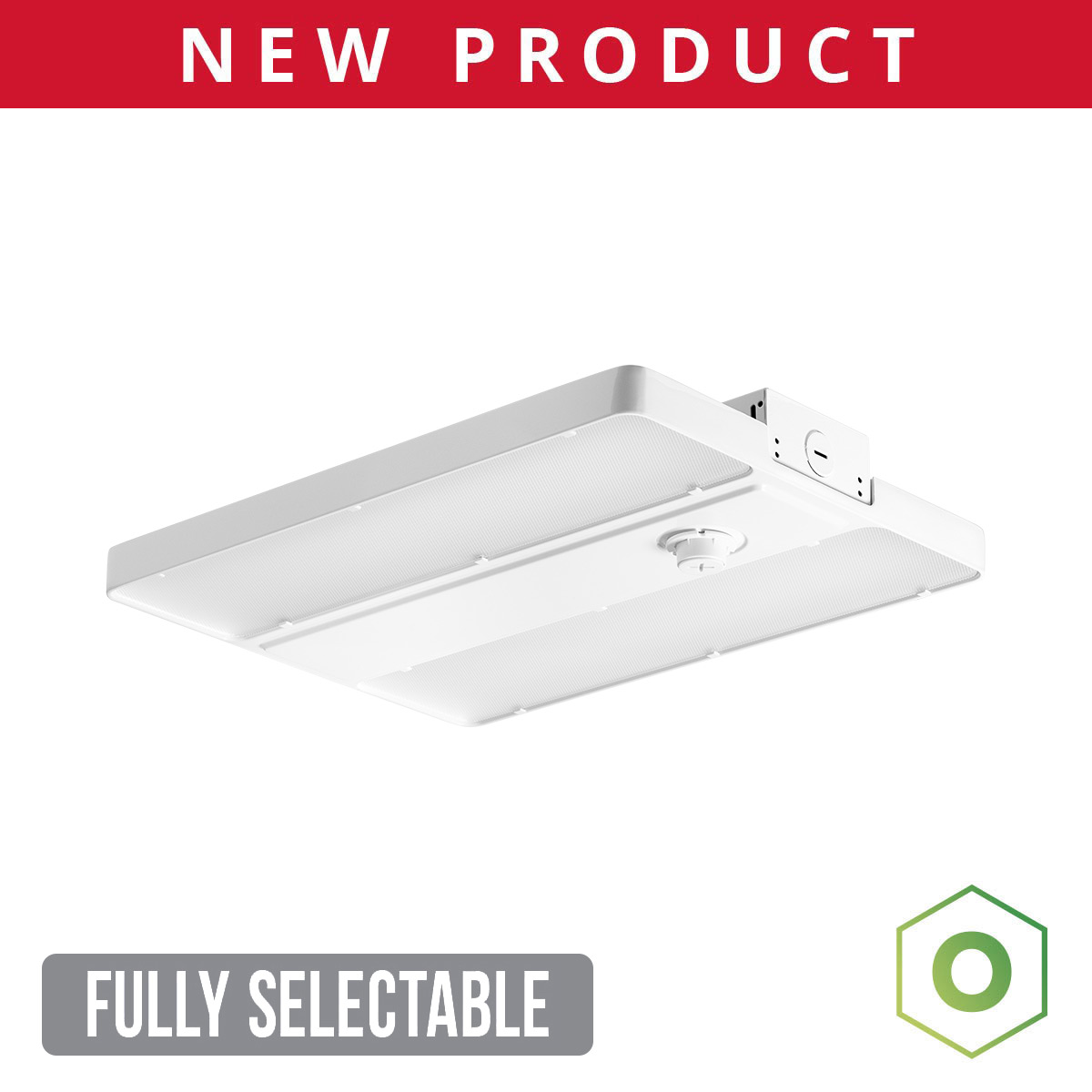

Origin Selectable Die Cast High Bay Small
Origin by Atlas Lighting is our economy line of products that are designed to provide a highly competitive, lower-cost entry point to LED lighting. The Origin lineup of Fully Selectable Die Cast High Bays offers a range of configurations to meet a variety of different high bay applications. These fixtures feature both selectable lumens and color temperature, reducing stocking complexity and provides additional flexibility for contractors.
All Available Sizes
Featured Resources
Variations
| Housing | Unit | CRI | Selectable 4000K CCT | Selectable 5000K CCT | Wattage | Replaces Up To | ||
| Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | |||||
| ORHBS | 12-21L | 80 | 15,429 | 140 | 15,487 | 141 | 110 | 175W MH |
| 80 | 17,471 | 135 | 17,687 | 136 | 130 | 250W MH | ||
| 80 | 20,381 | 137 | 20,817 | 139 | 150 | 400W MH | ||
Features & Specifications
- Replace up to 6 standard high bays with just 1!
- Durable die-cast aluminum construction maximizes heat dissipation in an extremely compact housing.
- Energy-efficient design saves money on energy costs.

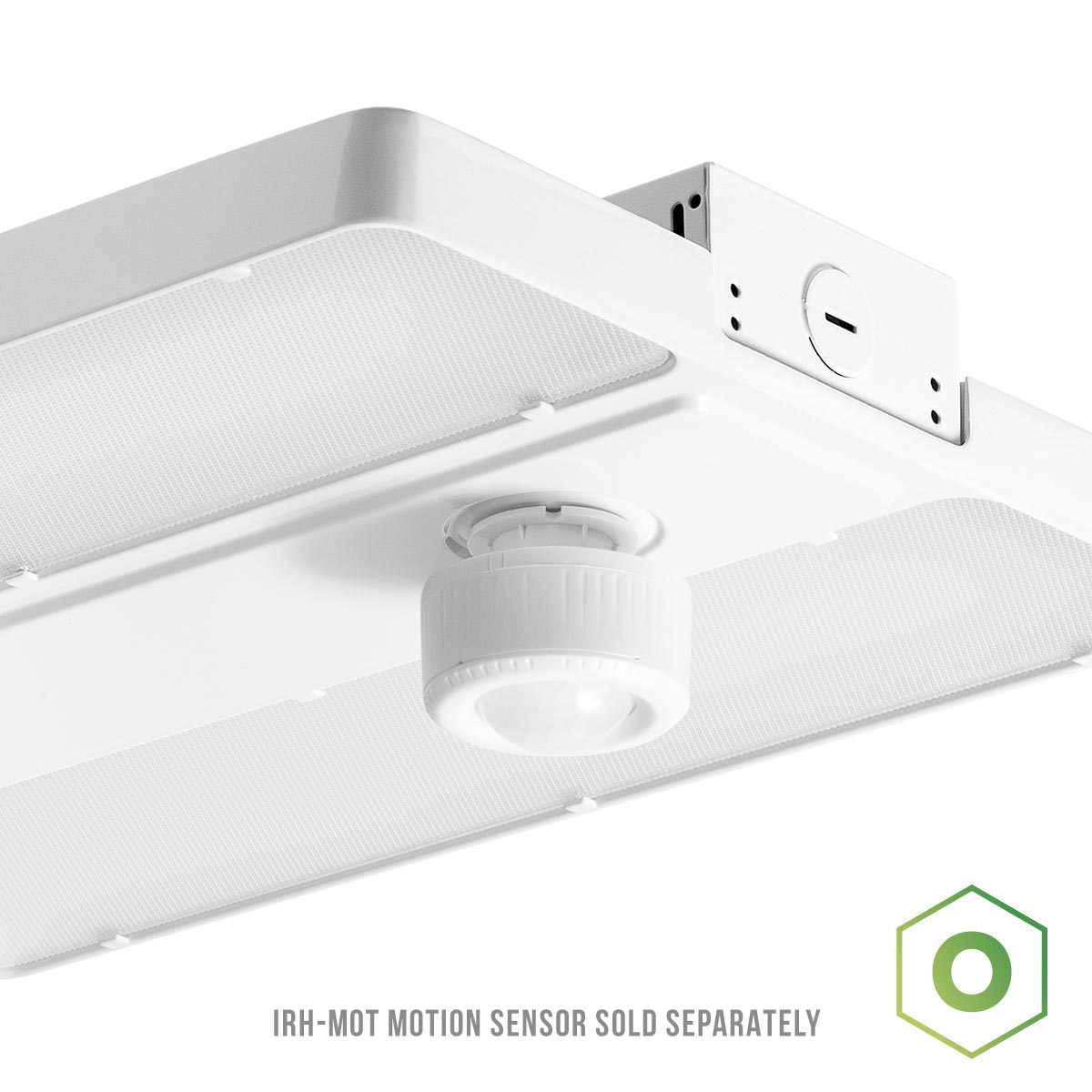

- Built-in Connect Control Port requires no wiring to connect the available IRH-MOT motion sensor (sold separately).

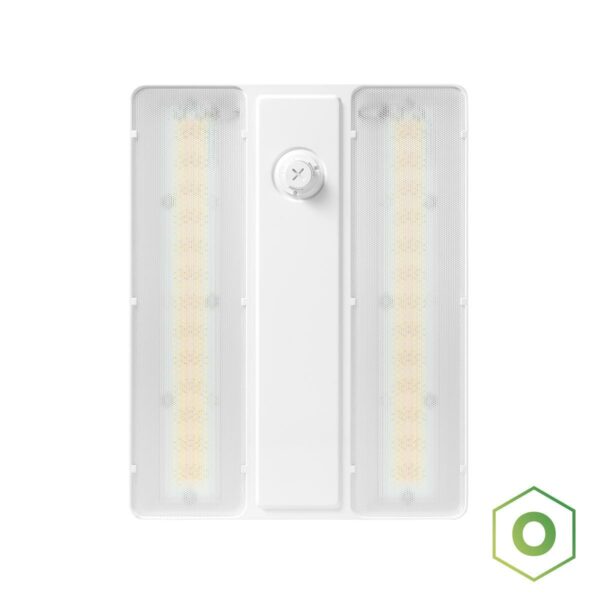

- High brightness LEDs and diffused lens create a smooth light distribution pattern.
- Origin Series products are backed by the same US-based customer service and technical support teams as all other Atlas products.
- Product series is available in 2 different compact housing sizes.
Max Lumens
20,817Min Lumens
15,429Color Temperatures
Selectable 4000K 5000KAdditional Options
